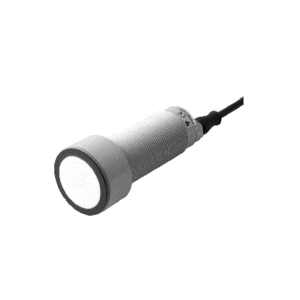

Carlo Gavazzi Ultrasonic Diffuse Sensor, M30 with Ø40 Front PBT Housing, 350-6000mm, O/P: 2x NPN, Cable, 12-30VDC
A self-contained multi function diffuse ultrasonic sensor with a sensing range of 350 to 6000 mm. 2 switching outputs - easely set up for two different output modes and adjusted by teach-in - makes it ideal for level control tasks in a wide variety of vessels. A sturdy one-piece polyester housing provides the perfect packaging for the sophisticated microprocessor controlled and digitally filtered sensor electronics. Excellent EMC performance and precision are typical features of this sensor on true distance measurement
General Characteristics
Cylindrical M30 with Ø40 front and PBT housing
Sensing distance: 350-6000 mm
Power supply: 12 to 30 VDC
Outputs: Two multi function switching outputs. PNP or NPN
Setup: Normal switching or adjustable hysteresis
Repeatability 1%
Beam angle. ±7°
Protection: Short-circuit, reverse polarity and overvoltage
