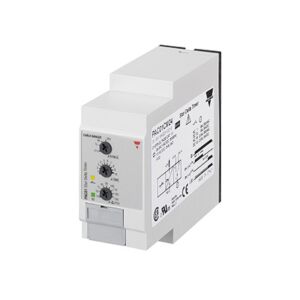

Carlo Gavazzi Timer Delay On Operate Din-Rail DAA01CM24

Carlo Gavazzi Timer Delay On Operate, Range: 0.1s-100h, DIN-Rail, SPDT, D Housing 22.5mm, Supply: 24VDC and 24-240VAC.

Multi-voltage delay on operate timer with 7 selectable time ranges within 0.1 s and 100 h. For mounting on DINrail (DAA01) or plug-in (PAA01).

General Characteristics

• Time range 0.1 s to 100 h
• Knob selection of time range
• Knob adjustable time setting
• Automatic start
• Repeatability: 0.2%
• Output: 8 A SPDT or 2 x 8 A SPDT relays
• For mounting on DIN-rail in accordance with DIN/EN 50 022 or Plug-in
• 22.5 Euronorm or 36 mm plug-in module housing
• Combined AC and DC power supply
• LED indication for relay status and power supply ON
