Carlo Gavazzi Proximity Sensor Inductive M18, ICB18S30F08NO

Carlo Gavazzi Proximity Sensor Inductive, M18 Nickel-Plated Brass Short Housing, 8mm Flush, NPN NO Switching, Cable, 10-36VDC

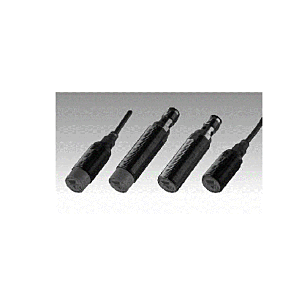

A family of inductive proximity switches in industrial standard nickel-plated brass housings. They are able to handle applications where high sensing range is requested. Output is open collector NPN or PNP transistors.

General Characteristics

• Sensing distance: 8 to 14 mm
• Flush and non-flush types
• Short and long body versions
• Rated operational voltage (Ub): 10 - 36 VDC
• Output: DC 200 mA, NPN or PNP
• Normally open, Normally closed
• LED indication for output ON
• Protection: reverse polarity, short circuit, transients
• Cable and M12 plug versions
• According to IEC 60947-5-2
• Laser engraved on front cap, permanently legible
