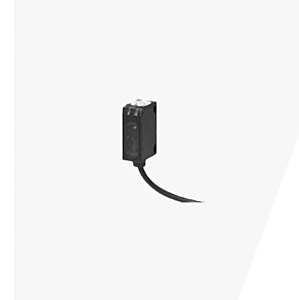

Carlo Gavazzi Photoelectric Sensor Diffuse Reflective 12x32x20mm, PD32CND50NPT

Carlo Gavazzi Photoelectric Sensor Diffuse Reflective, W12xH32xD20mm PMMA/ABS Housing, Adjustable Tech-In 500mm, NPN NO & NC Switching, Cable, 10-30VDC

The PD32CND50 sensor family comes in a compact 12 x 32 x 20 mm reinforced PMMA/ABS-housing. The sensors are useful in applications where high accuracy detection as well as small size is required. The Teach-In function for adjustment of the sensitivity makes the sensors highly flexible. The output type is preset (NPN or PNP), and the output switching function is programmable (NO or NC).

General Characteristics

• Miniature sensor range
• Range: 500 mm
• Sensitivity adjustment by Teach-In programming
• Modulated, red light 660 nm
• Supply voltage: 10 to 30 VDC
• Output: 100 mA, NPN or PNP preset
• Make and break switching function programmable
• LED for output indication, signal stability and power ON
• Protection: reverse polarity, short circuit and transients
• Cable and plug versions
• Compact housing
• Excellent EMC performance
