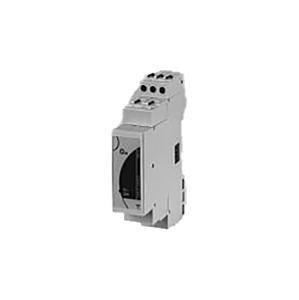

Carlo Gavazzi Solar PV Eos-Array Isolation Enhancement Unit, VMU-11000

Carlo Gavazzi Energy Management Control Solution For Solar PV Application, Eos-Array Lite / Eos Array Isolation Enhancement Unit, Range: 800-1000VDC

Isolation enhancement unit suitable to be used in combination with VMU modules. VMU-1 allows to enhance the isolation of the voltage measuring input to earth from 800VDC to 1000VDC. The module is to be mounted between the first VMU-S0 or VMU-S and all the other VMU modules. Housing for DIN-rail mounting, IP40 (front) protection degree.

General Characteristics

• Isolation enhancement of voltage measuring inputs to earth of VMU-S0 / VMU-S: from 800VDC (without VMU-1) to 1000VDC max.
• Dimensions: 1-DIN module
• Protection degree (front): IP40
• Isolation voltage 1000V: isolation enhancement on VMU-S0 voltage measuring input to earth from 800VDC (without module) to 1000VDC.
• Only one VMU-1 is needed per Eos-Array
