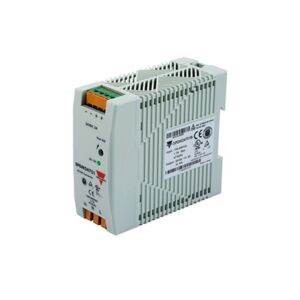

Carlo Gavazzi Switching Power Supply AC/DC 75W 1-Phase 24V SPDM24751

Carlo Gavazzi Switching Power Supply 75W 1-Phase, Input: 85-264VAC/120-375VDC, Output: 24VDC/3A, Screw Terminal, Din-Rail.

The SPDM is designed to be used in all automation applications, where it can be easily installed on the Din Rail and save installation time by up to 50% with the option of the spring terminal. The SPDM is a premium quality product at a attractive price level. Reliability is guaranteed through the multiple integrated protections. This product is extremely suitable for all applications which require single-phase power supply with universal voltage input and high efficiency.

General Characteristics

• Power in compact dimensions. The SPDM provide up to +30% space saving when compared to SPD.
• Reliable and cost saving. The SPDM provide high reliability power at an attractive price level.
• Low power loss, high efficiency. The compact design results in low energy losses and high efficiency.
• Intuitive indication. A clear LED indicate the status of the power supply.
• Universal AC, DC input range. SPDM Series can be powered with AC Voltage (85VAC to 264VAC) or with DC Voltage (130VDC to 350VDC).
• Reliable critical protection. The operation safety is guaranteed by the various output protections: Over Voltage (OVP), Over Load (OLP), Short Circuit (SCP) and Over Temperature (OTP).
• High efficiency and wide operating ambient temperature. These power supplies have an efficiency up to 88%.
• Ease of installation. The SPDM can be installed in 5 different orientations, enabling the unit to fit easily into installations with limited space.
