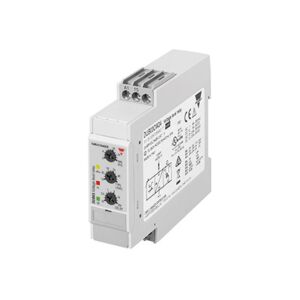

Carlo Gavazzi Monitoring Relay Voltage 1-Phase Plug-In PUB03CW24

USD 115.75
Out of stock
Alliance Part No
AA-PUB03CW24
Mfr. Part No
PUB03CW24
Datasheet
Monitoring Relay 1-Phase True RMS AC/DC Over or Under Voltage, Plug-In, SPDT, 50-400Hz, Supply: 12-240VAC/DC.
Carlo Gavazzi Monitoring Relay Voltage 1-Phase Plug-In PUB03CW24 is available to buy in increments of 1

Shipping

Local & International

Guarantee

30 Days Money Back

Payment On Delivery

Cash On Delivery Option

Online Suport

We Have Support 24/7

Carlo Gavazzi Monitoring Relay 1-Phase True RMS AC/DC Over or Under Voltage, Plug-In, SPDT, 50-400Hz, Supply: 12-240VAC/DC.

DUB03 and PUB03 are precise TRMS AC/DC over or under voltage (selectable by DIP-switch) monitoring relays. Owing to the built-in latch function, the ON-position of the relay output can be maintained. Inhibit function can be used to avoid relay operation when not desired (maintenance, transitions). The LED's indicate the state of the alarm and the output relay.

General Characteristics

  • TRMS AC/DC over or under voltage monitoring relays
  • Selection of measuring range by DIP-switches
  • Adjustable voltage on relative scale
  • Adjustable hysteresis on relative scale
  • Adjustable delay function (0.1 to 30 s)
  • Programmable latching or inhibit at set level
  • Output: 8 A SPDT relay N.D. or N.E. selectable
  • For mounting on DIN-rail in accordance with DIN/EN 50 022 (DUB03) or plug-in module (PUB03)
  • 22.5 mm Euronorm housing (DUB03) or 36 mm plug-in module (PUB03)
  • LED indication for relay, alarm and power supply ON
More Information
Manufacturer Carlo Gavazzi
Brand Carlo Gavazzi
Alliance Part No AA-PUB03CW24
Mfr. Part No PUB03CW24
Datasheet Download
