Carlo Gavazzi Dupline Fieldbus Receiver Analog Signal G34396470024

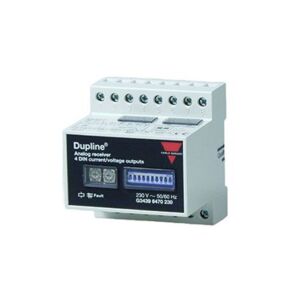

Carlo Gavazzi Dupline Fieldbus Receiver For Universal Analog Signal, 4x Channels Output 0-20mA, 4-20mA or 0-10VDC, H4 Housing Din Rail Type, Supply: 24VAC.

Dupline® 4 output universal analog output module with external supply. The module receives signals on a digital format from Dupline and converts them to analog outputs. The output type can be selected as 0-20 mA, 4-20 mA or 0-10 VDC for each output individually making a mix of analog output types on the same module possible. The transmission format on Dupline® can be selected to fit the output module into existing installations, or simply to use the most suitable combination of resolution, signaling capacity and speed. The formats are: 8-bit binary, Analink and 3 1/2 digit BCD (with or without multiplexing).

General Characteristics

• 4 analog outputs.
• Outputs individually configurable for 0-20 mA, 4-20 mA or 0-10 VDC.
• Selectable resolution: 1/1999 or 1/255 of full scale.
• Selectable data format: 8-bit, Analink or 3 ½ digit BCD.
• EMC immunity according to EN 50082-2 (industrial environment).
• DIN-rail mounting (EN 50022).
• Address-selection through rotary-switches.
• LED-indication for Supply and Dupline® carrier.
• LED-indication for invalid switch setting and faulty received data.
• Watchdog output for faulty received data.
• H4 housing.
• AC or DC power supply.
