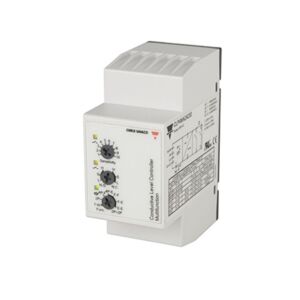

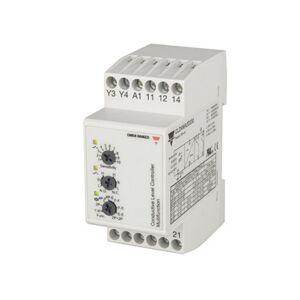

Carlo Gavazzi Conductive Sensor Level Controller Din-Rail CLD4MA2D230

Carlo Gavazzi Conductive Sensor Level Controller, 2 to 4-Point Level Charging/Discharging, Sensitivity Adjust 250-500K Ohm, SPDT+SPST, Din-Rail, Supply: 230VAC.

μ-Processor based level controller for liquids with a wide sensitivity range (like sewage water, chemicals, salt water etc.). The controller has a separate output for alarm indication in case of a tank running dry or if an overflow condition occurs. 8A SPDT/SPST relay output, NO/NC. Sensitivity control by potentiometer level in 3 ranges.

General Characteristics

• Conductive level controller.
• Adjustment of sensitivity – operating resistance from 250 Ohm to 500K Ohm.
• Multiple combinations of filling and emptying applications.
• Low-voltage AC electrodes.
• Easy installation on DIN rails or with 11 pin circular plug.
• Rated operational voltage: 24 VAC/DC, 115 VAC or 230 VAC.
• Output 2x8A/250 VAC SPDT relay.
• LED indication for: Output ON and Power ON.
